Precision Manufacturing, Consistent Output—Built on 20 Years of Expertise
This corner pasting machine ensures a firm, clean, and consistent corner sticking effect, directly assisting in the production of durable and market demand-compliant packaging.
| Speed: | 20-40pcs/min |
| Facial paper pile height: | 900mm |
| Cardboard pile height: | 12-150mm |

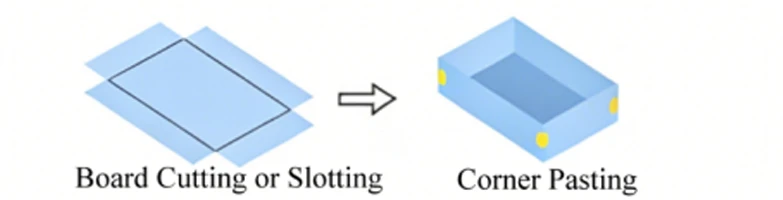

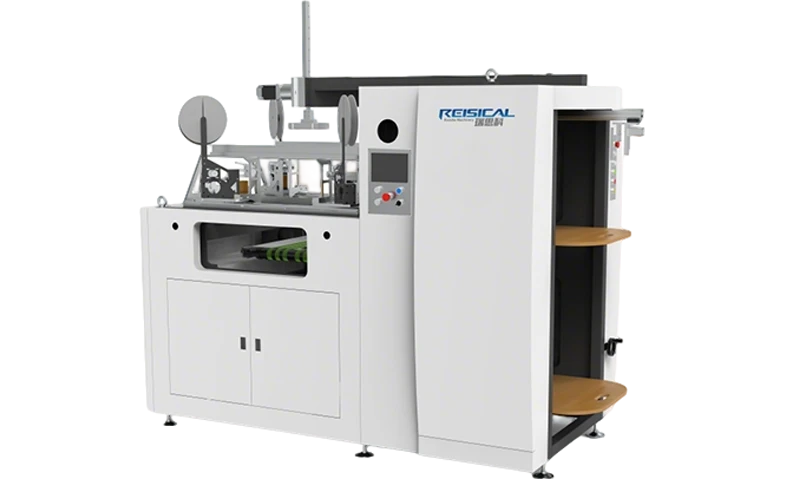

This fully automatic corner pasting machine is an important component of the rigid box-making system. It is designed with precision and efficiency, and can automatically complete the process of bonding and reinforcing the corners of the cardboard. It can improve the structural integrity and aesthetics of high-quality gift packaging boxes and special packaging. Its smooth operation is the key to achieving high-speed continuous production of the entire production line. This fully automatic corner pasting machine is fundamental to the overall quality and efficiency of the gift box manufacturing process.
1.PLC control, humanized operation interface.
2. The cardboard conveying feeds automatically, and can be stacked up to 1400mm of cardboard.
3. The cardboard fast-stacked conversion device.
4. Replace the mold fast and easily, suitable for different specifications of products.
5. Hot melt tape automatic conveying, cutting, pasting, and one-time box corners of adhesive.
6. Hot melt tape runs out with the automatic alarm function.
|
|
 |
 |
|

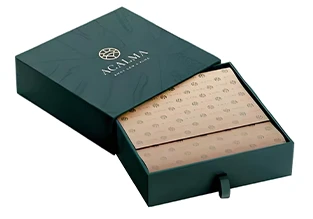

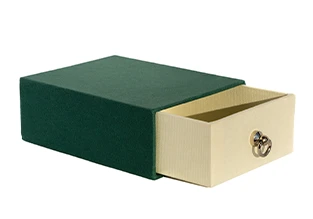

Drawer-Box-with-Pull-Tab |

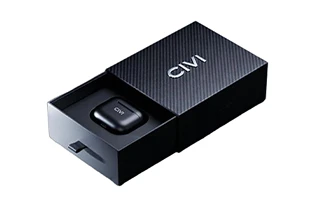

Electronic-Product-Drawer-Box |
Gift-Drawer-Box |
| Model | RSK-6415TJ |
| Carton size | Min.50*80(50*50) Max.400*600 |
| Cardboard size | Min.70*110 Max.600*800 |
| Carton height | 12-150mm |
| Cardboard thickness | 0.8-3mm |
| Cardboard stack height | 900mm(1380) |
| Production speed | 20-40pcs/min |
| Motor power | 3kw |
| Air source requirement | 30L/min 0.6Mpa |
| Weight of the whole machine | 1500kg |
| Overall machine size | L2650*W3400*H2400mm |
We use internationally advanced technology and well-known brands of electrical appliances to manufacture machines. If the machines do not meet the customer's expectations, we will not leave the factory.
Weak creases typically occur due to insufficient creasing pressure, blunt or misaligned creasing blades, or unsuitable paper quality. Adjust the creasing pressure according to the paper thickness, inspect and sharpen or replace creasing blades regularly, and verify that the paper stock meets the recommended specifications for folding endurance.
Adhesive issues may stem from incorrect glue application settings, clogged nozzles, or improper glue viscosity. Check and clean the glue nozzles routinely, adjust the glue amount and application timing based on box size, and ensure the adhesive viscosity is suitable for the paper type. Also, maintain consistent machine speed to allow proper adhesive setting.
Absolutely. Our machines are not one-size-fits-all. We tailor the forming heads, feeder system, and machine footprint to your exact box dimensions and required speed (CPH). Whether you need a compact unit for short runs or a high-speed line for mass production, we engineer the optimal solution.
Yes, that's our specialty. We customize the creasing, folding, and glueing stations to suit your material's properties. By adjusting pressures, temperatures, and application methods, we guarantee flawless formation for your specific paper stock, eliminating cracking or misalignment.
Yes, it's designed for adaptability. Our core architecture is modular. You can later upgrade or reconfigure modules (e.g., adding a window-patching unit or a hot-foil stamping station) to accommodate new box designs. This protects your investment and ensures long-term relevance.
