Precision Manufacturing, Consistent Output—Built on 20 Years of Expertise
The servo motion control feeder and the paper discharge scraper of the roller are made of phosphor bronze (with high hardness and wear resistance).The production adopts a box-lifting method to prevent scratches and abrasions on the surface paper.
| Speed: | 32pcs/min |
| Facial paper pile height: | 550mm |
| Cardboard pile height: | 1380mm |

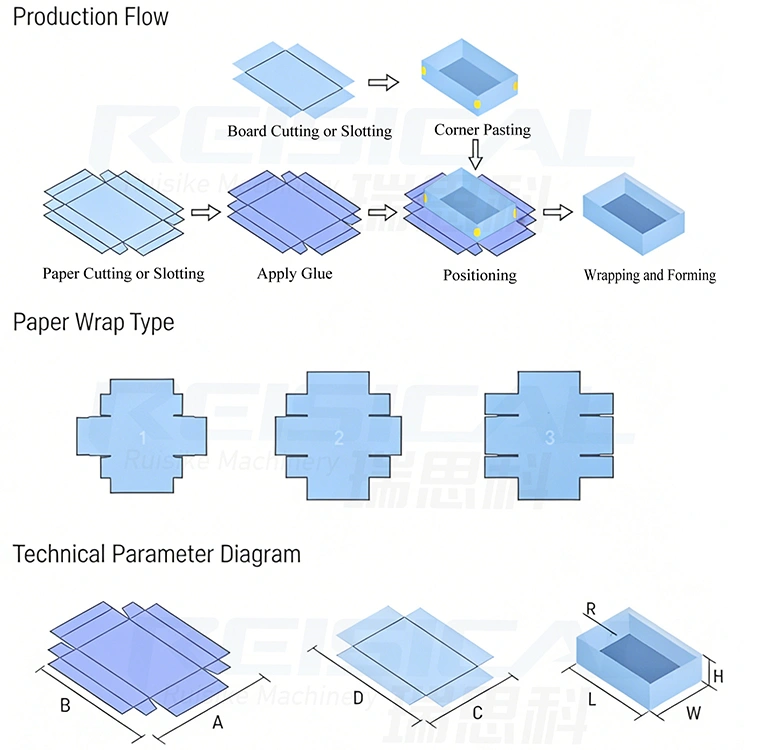

This rigid box making machine is mainly composed of three parts: automatic robot position machine, automatic corner machine and wrapping machine. Among them, the automatic corner machine uses 4 servo motors and is a relatively cost-effective choice. Additionally, through the coordinated action of multiple sets of servo drives and electronic CAM control, this rigid box maker can precisely position cardboard and paper. Finally, they are combined and formed through the wrapping machine, ensuring the quality while maintaining the stability and consistency of the sample formation. The equipment is easy and flexible to operate, making it suitable for packaging factories that require mass production and frequent model changes.
1. Economical automatic corner pasting machine

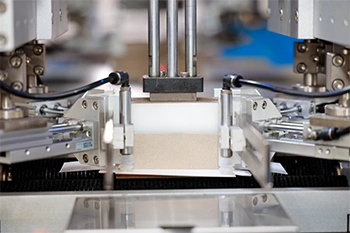

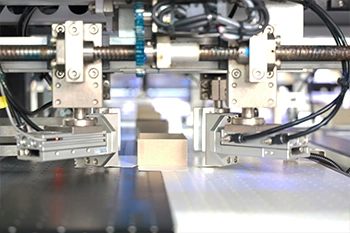

In the automatic corner pasting machine section, this rigid box making machine uses 4 servo motors. The corner pasting structure is driven by a cylinder, relying on the stability of air pressure and mechanical limit, demonstrating the cost performance of the equipment.
2. Automatic positioning reduces labor costs

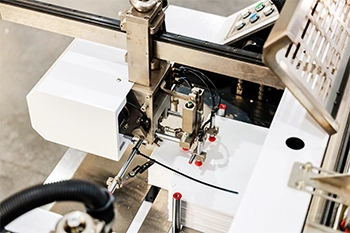

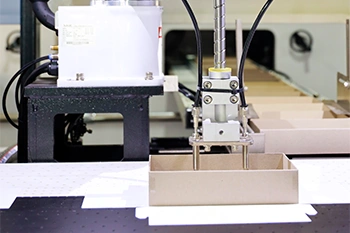

The robot position machine can intelligently perform box type recognition and position correction. When the model is different and the model is changed, the parameters can be adjusted. There is no need to repeatedly test the machine, which greatly improves efficiency and reduces the reliance on manual labor.
3. High synchronization and more stable operation
The rigid box making machines adopt an electronic CAM system. The wrapping and conveying workstations are independently driven and uniformly coordinated by the servo system, effectively reducing mechanical shock and error accumulation, and ensuring the stability of long-term continuous production.
4. Automatic gluing, uniform and smooth
This gift box making machine precisely controls the automatic application of a thin but highly adhesive layer of glue on the paper. The amount of glue applied is stable and consistent, effectively avoiding common problems such as knife marks and glue marks.
This box making machines are suitable for manufacturing various high-end top and bottom cover boxes such as tea boxes, shoe boxes, cosmetic boxes, accessory boxes, jewelry boxes, accessory packaging boxes, and electronic device packaging boxes.
 |
 |
 |
|
Shoe-Box |
Wine-Box-with-Lid |
Jewelry-Box |
|
Model |
RSK-600 SET |
|
Paper Size (A*B) |
Min.100*140 Max.610*850 |
|
Box Size (W*L) |
Min.50*100(50*50) Max.400*600 |
|
Box Height (H) |
10-130/150mm |
|
Turn in Depth (R) |
10*100mm |
|
Folded Ear Size |
10*100mm |
|
Paper Thickness |
100-300g/m2 |
|
Board Thickness |
0.8-3mm |
|
Paper Stack Height |
550mm |
|
Board Stack Height |
1380mm |
|
Speed |
28-32pcs/min |
|
Motor Power |
20 kw |
|
Electric Heating Power |
10 kw |
|
Air Source Requirement |
50L/min 0.6Mpa |
|
Machine Weight |
5500kg |
|
Machine Size |
L6360*W5000*H3260mm |
We use internationally advanced technology and well-known brands of electrical appliances to manufacture machines. If the machines do not meet the customer's expectations, we will not leave the factory.
Weak creases typically occur due to insufficient creasing pressure, blunt or misaligned creasing blades, or unsuitable paper quality. Adjust the creasing pressure according to the paper thickness, inspect and sharpen or replace creasing blades regularly, and verify that the paper stock meets the recommended specifications for folding endurance.
Adhesive issues may stem from incorrect glue application settings, clogged nozzles, or improper glue viscosity. Check and clean the glue nozzles routinely, adjust the glue amount and application timing based on box size, and ensure the adhesive viscosity is suitable for the paper type. Also, maintain consistent machine speed to allow proper adhesive setting.
Absolutely. Our machines are not one-size-fits-all. We tailor the forming heads, feeder system, and machine footprint to your exact box dimensions and required speed (CPH). Whether you need a compact unit for short runs or a high-speed line for mass production, we engineer the optimal solution.
Yes, that's our specialty. We customize the creasing, folding, and glueing stations to suit your material's properties. By adjusting pressures, temperatures, and application methods, we guarantee flawless formation for your specific paper stock, eliminating cracking or misalignment.
Yes, it's designed for adaptability. Our core architecture is modular. You can later upgrade or reconfigure modules (e.g., adding a window-patching unit or a hot-foil stamping station) to accommodate new box designs. This protects your investment and ensures long-term relevance.
