Precision Manufacturing, Consistent Output—Built on 20 Years of Expertise

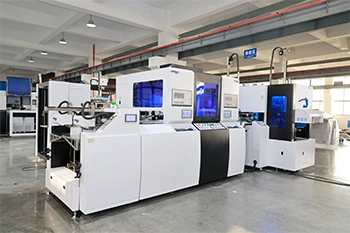

This machine can simultaneously make the top and bottom of rigid boxes, with two sets of independent vision robots and an electronic CAM operation action system.
| Speed: | 66pcs/min |
| Facial paper pile height: | 550mm |
| Cardboard pile height: | 1380mm |
This rigid box making machine is specially designed for the production of relatively small high-end gift boxes, such as small jewelry boxes, cosmetic boxes, single can tea boxes, etc. It adopts a servo drive structure as a whole and combines an electronic CAM control system to achieve high forming accuracy and stable operation, making it very suitable for long-term operation. The highlight of this rigid box maker lies in its configuration of dual paper feeding, dual visual positioning and dual-station forming structure, which enables the simultaneous production of covers and boxes themselves on double station wrapping. Inner lining paper raw materials: writing paper, coated paper, special paper and fabric, etc.

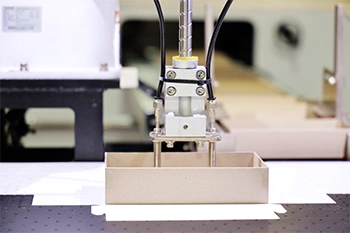

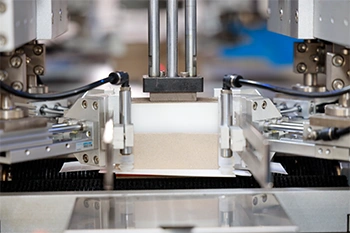

1. All-electronic CAM and All-servo forming
This automatic rigid box making machine adopts an electronic CAM control system, equipped with a motion controller to achieve full servo linkage control and transmission, making the forming force more uniform, coordinated and synchronous.

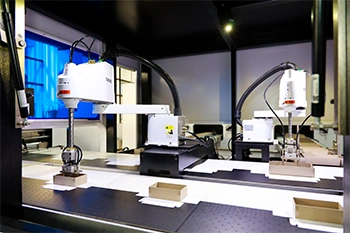

2. Double Vision & Double Forming
The dual-flying system and dual-vision positioning design enable the simultaneous production of bottom covers or the parallel production of covers and drawer boxes on the same device. Significantly enhance rigid box making machine utilization and production line flexibility to meet the production demands of multi-box types and multiple materials.

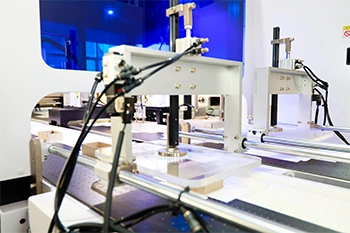

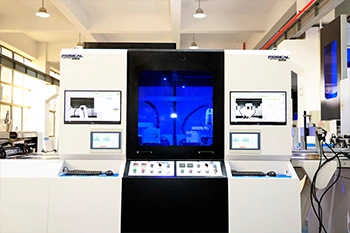

3. Visual positioning: One-click mold adjustment
The parametric mold adjustment system based on visual positioning can automatically complete the mold change by simply inputting the box size, without the need for repeated calibration. By adjusting parameters and providing visual guidance, the operation of the gift box making machine adjusting the sample model becomes more convenient, which is conducive to saving labor costs and significantly improving production efficiency.

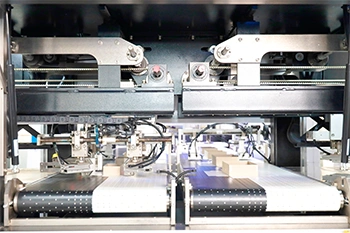

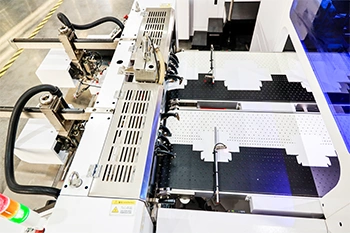

4. Intelligent gluing: Stable molding
The box making machine is equipped with a glue control system, and all the glue is controllable, which to a certain extent reduces the waste of materials. In addition, the machine, in combination with a fully servo forming structure, also reduces the risk of glue bubbles, providing a guarantee for the uniform appearance of the finished paper box products.
It is suitable for book-shaped boxes, mobile phone boxes, cosmetic boxes, tea boxes, shoe boxes, jewelry boxes and electronic device packaging boxes, etc.
 |
 |
 |
|
Cosmetics Box |
Electronic Product Box |
Gift-Box |
|
Model |
RSK-300SC |
|
Paper Size (A*B) |
Min.70*110 Max.460*600 |
|
Box Size (W*L) |
Min.40*60 Max.270*350 |
|
Box Height (H) |
12-120mm |
|
Turn in Depth (R) |
10*100mm |
|
Folded Ear Size |
10*100mm |
|
Paper Thickness |
100-300g/m2 |
|
Board Thickness |
0.8-3mm |
|
Stacking Height |
550mm |
|
Board Stack Height |
1380mm |
|
Speed |
30-66pcs/min |
|
Motor Power |
30 kw |
|
Electric Heating Power |
10 kw |
|
Air Source Requirement |
50L/min 0.6Mpa |
|
Machine Weight |
8000kg |
|
Machine Size |
L6800*W6200*H3260mm |
We use internationally advanced technology and well-known brands of electrical appliances to manufacture machines. If the machines do not meet the customer's expectations, we will not leave the factory.
Weak creases typically occur due to insufficient creasing pressure, blunt or misaligned creasing blades, or unsuitable paper quality. Adjust the creasing pressure according to the paper thickness, inspect and sharpen or replace creasing blades regularly, and verify that the paper stock meets the recommended specifications for folding endurance.
Adhesive issues may stem from incorrect glue application settings, clogged nozzles, or improper glue viscosity. Check and clean the glue nozzles routinely, adjust the glue amount and application timing based on box size, and ensure the adhesive viscosity is suitable for the paper type. Also, maintain consistent machine speed to allow proper adhesive setting.
Absolutely. Our machines are not one-size-fits-all. We tailor the forming heads, feeder system, and machine footprint to your exact box dimensions and required speed (CPH). Whether you need a compact unit for short runs or a high-speed line for mass production, we engineer the optimal solution.
Yes, that's our specialty. We customize the creasing, folding, and glueing stations to suit your material's properties. By adjusting pressures, temperatures, and application methods, we guarantee flawless formation for your specific paper stock, eliminating cracking or misalignment.
Yes, it's designed for adaptability. Our core architecture is modular. You can later upgrade or reconfigure modules (e.g., adding a window-patching unit or a hot-foil stamping station) to accommodate new box designs. This protects your investment and ensures long-term relevance.
