Rigid Box Forming

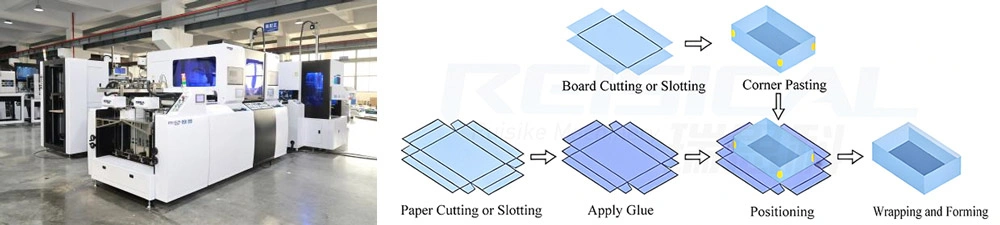

Once the gray board is cut and the surface paper laminated—those two steps where you really start to see the quality come through—you're ready for the main event: rigid box forming. This is where everything comes together. Instead of relying on a bunch of manual steps, an automatic rigid box forming machine handles the heavy lifting, turning those prepared materials into finished boxes that are clean, sturdy, and consistent.

So why do most packaging operations lean on an automatic rigid box forming machine these days? Simple: it takes what used to be a slow, fiddly process and makes it smooth and repeatable. If you’ve ever seen someone try to fold and glue rigid boxes by hand, you know it’s tedious—and it’s easy to end up with mismatched corners or glue where it shouldn’t be. With an automatic system, you’ve got servo drives, PLC controls, and vision guidance all working together. Feeding, gluing, positioning, laminating, ear folding, pressing—it’s one continuous flow. Less waste, fewer headaches, and way more output.

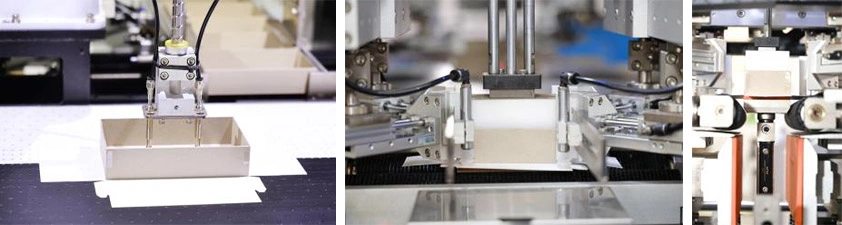

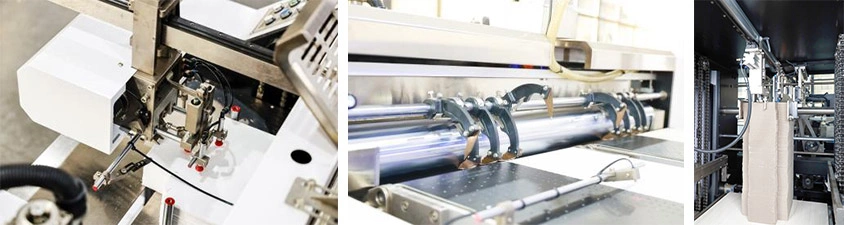

When the machine starts up, the gray board and surface paper feed in on their own. A three-axis mechanism keeps the paper smooth as it moves—no wrinkles, no stretching—and vacuum suction holds everything steady so nothing shifts out of place. Then the gluing happens: hot melt goes down in a nice even layer, which means solid bonding without the messy overflow you sometimes get with manual work. Right after that, a manipulator mates the paper to the board in milliseconds, holding tolerances under 0.1mm. It’s precise every single time.

During the actual forming stage, the machine really shows its flexibility. Multiple electronic cam units let it handle different setups—single or multi-cavity, longer ear folds—so it works with most rigid box styles out there. Changing box sizes? Just tweak a few key parameters and you’re off to the next run. The rest of the cycle—ear folding, edge pressing, shaping—is supported by hydraulic and pneumatic correction that adjusts in real time. The end result: sharp corners, smooth surfaces, no creases or misalignment. The box looks exactly like it should, and the materials get to show off.

Throughout the whole process, there’s no need for someone to stand there folding, gluing, or babysitting the line. Operators just use the touchscreen to set parameters and keep an eye on things. The machine runs up to 30 boxes a minute, so mass production becomes straightforward rather than overwhelming. Built-in fault detection and infrared safety features help avoid surprises, and the footprint is compact enough that you’re not giving up half your floor space.

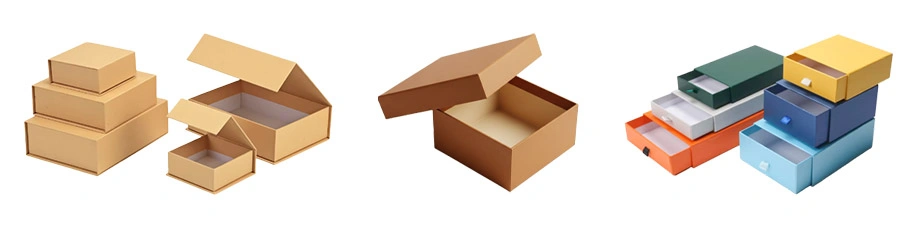

From the initial cutting and laminating all the way to the final formed box, every step has its own challenges—but a good automatic rigid box forming machine ties them together into something that just works. It turns a traditionally labor-heavy process into something you can basically start with a button. You still get that high-end, premium feel, but without the slow pace or inconsistency. Every box that comes out is clean, precise, and ready to represent whatever product it’s meant to hold.
