Greyboard Processing

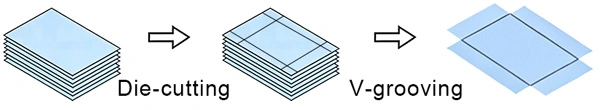

Grayboard is the go-to material for rigid gift boxes—used in everything from structural paper products to basic packaging. The whole process starts with turning raw full sheets into standardized blanks, which involves precision sizing on industrial paper cutters and then refining them through grooving or die-cutting.

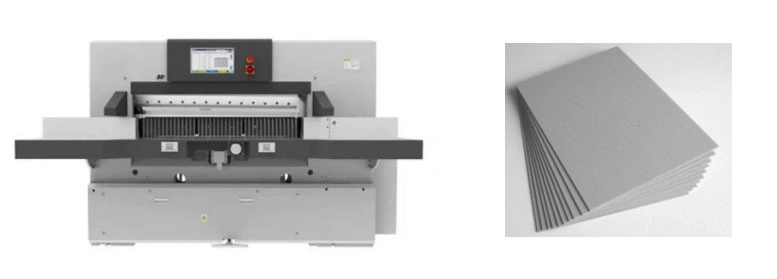

Here’s how it goes: first, the full sheets go to a heavyduty cutter. They’re set on the feed table, lined up against mechanical stops and laser markers so nothing shifts during cutting. Operators dial in the sizes based on work orders, run a test cut to doublecheck, and only after confirming the machine is dialed in do they start the actual batch run. A pressure mechanism holds everything tight, the feed system moves sheets through steadily, and the blades are sharp enough to leave edges clean—no burrs. While the batch is running, they randomly check sizes here and there to catch any drift. Once cut, the blanks get sorted by size, scrap gets tossed, and each batch is tagged before heading to grooving or diecut.

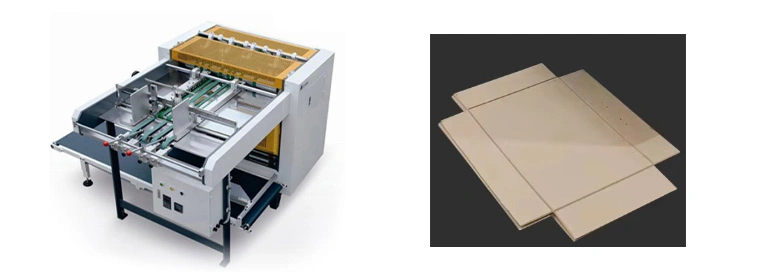

If the blanks are for foldable pieces—like the shell or liner of a gift box—they go to a grooving machine. That’s where the crease lines get stamped in, making sure the fold is clean and doesn’t crack. The blank sits in a positioning slot, and the machine’s settings for groove spacing, depth, and pressure are adjusted to get that balance between stiffness and bendability right. After a test run checks out, the automated batch starts, with realtime alignment monitoring keeping things consistent. Once grooving’s done, they clear off any debris, inspect, and get the parts ready for the rigid box forming machine.

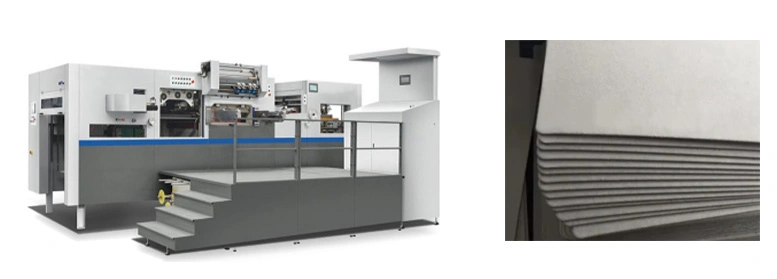

For special shapes—hollow sections, custom contours, anything out of the ordinary—diecutting takes over. Here, matched steel dies are installed and calibrated for position and clamping force. The blanks get held down with vacuum and clamps so they don’t creep during stamping. They run a few test pieces first to check edges, profile integrity, and crease depth, tweaking the settings as needed. Then it’s a singlestroke highpressure die, and right after, an automatic waste stripper pulls off the scrap, leaving a clean, consistent part.

After all the cutting and shaping, every piece goes through final inspection. Inspectors check dimensions, edges, groove depth, diecut profiles—anything that doesn’t meet spec, like burrs, cracks, warping, or misalignment, gets pulled. The good ones are dusted off, stacked neatly, batchlabeled, and moved to a staging area where they wait to feed into the rigid box forming machine.

The whole setup runs as a closedloop, fully automated process. Dimensional errors stay within a millimeter or so, and it hits a pretty sweet spot between efficiency and quality. Clean cuts, accurate creases, precise profiles—everything’s optimized for highend packaging, premium rigid gift boxes, and automated production lines. When you pair it with a solid rigid box forming machine, the workflow gives fast, stable output and boxes that come out looking consistently professional.
